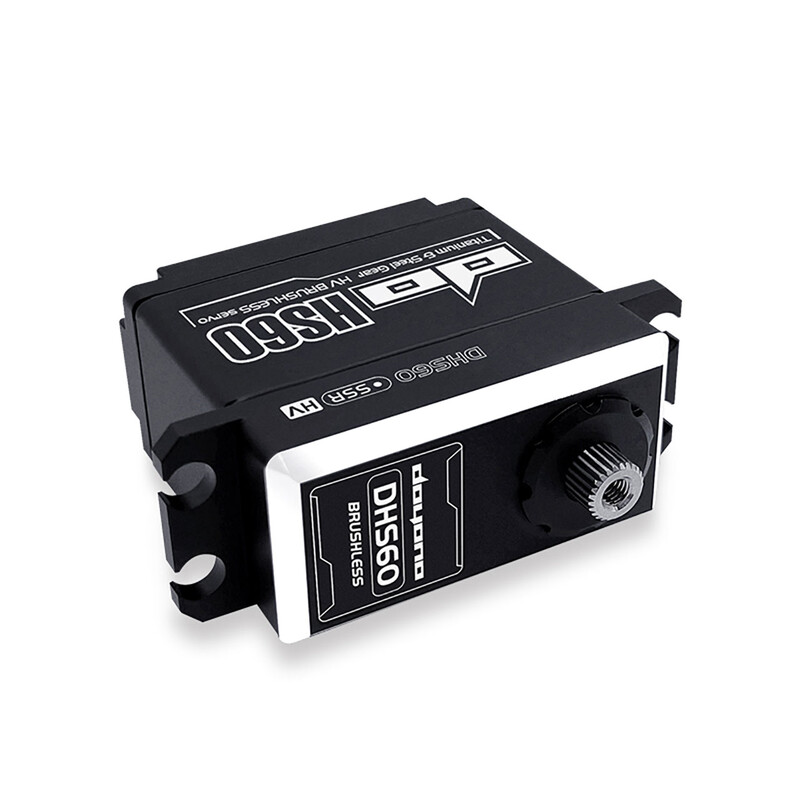

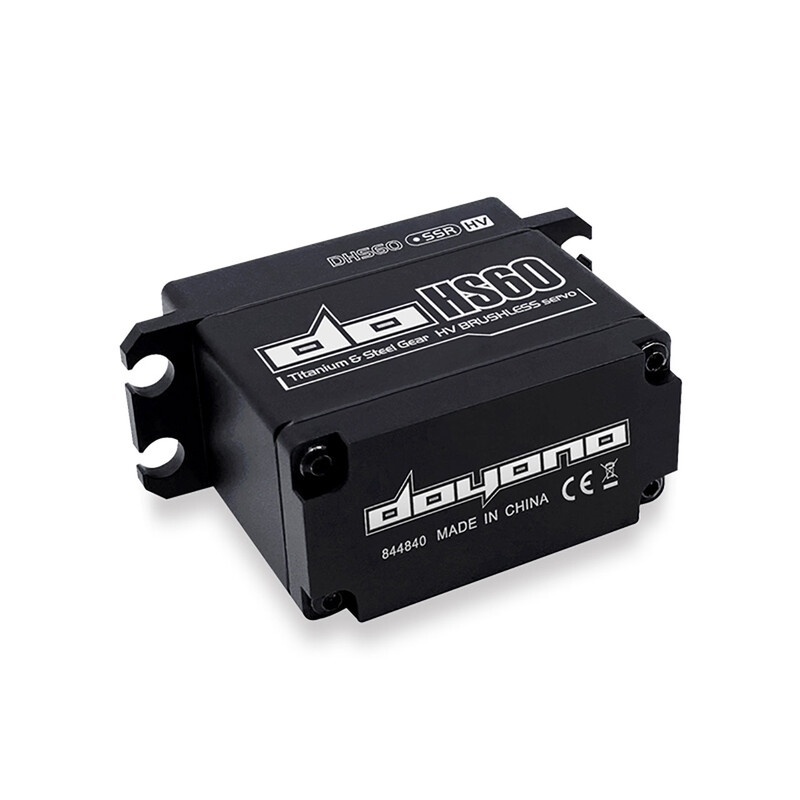

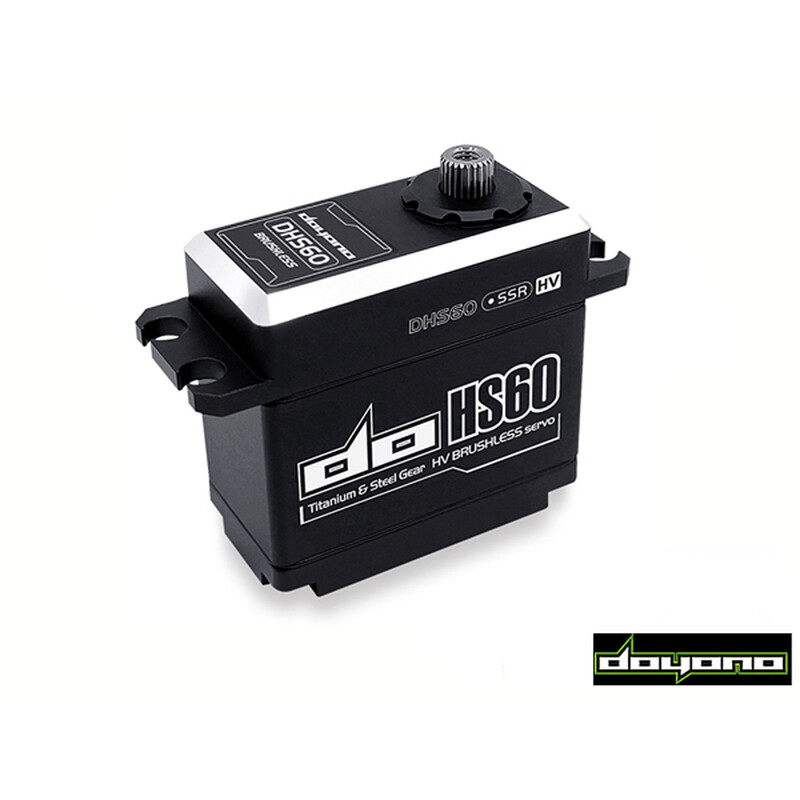

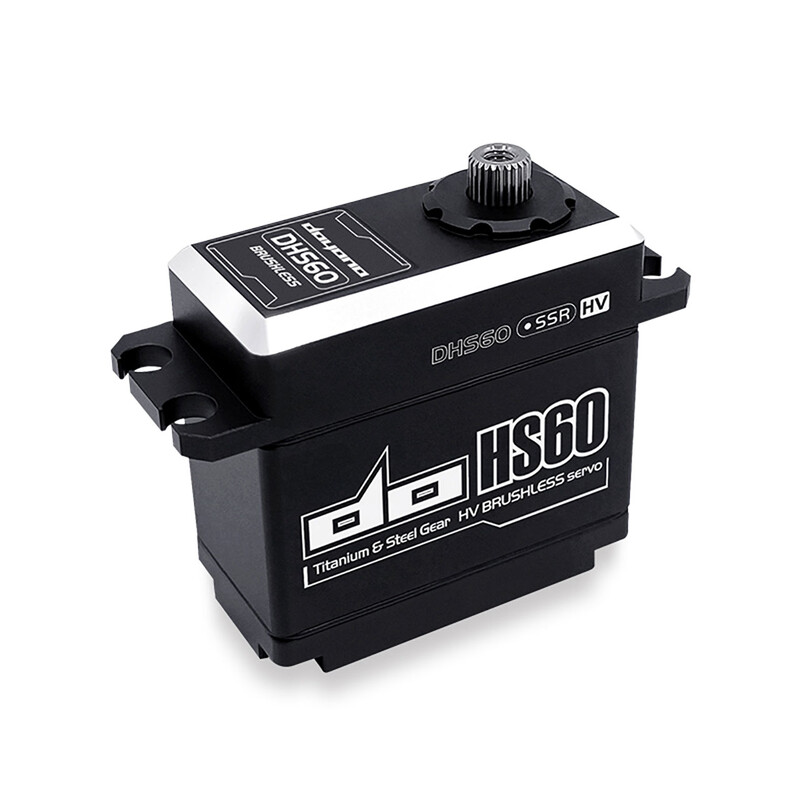

Brushless Servo HV CNC aluminium case 60.0kg (1)
Reference: DHS60
Condition: New product
Manufacturer: Doyono
- High Voltage Servo
- Gears made of durable titanium and steel
- Lightweight aluminum housing
- Very weather resistant
- Operating Voltage: 6.0-8.4V
- 2µs dead band, 1520µs neutral point
- 180mm connection wire length
6 Items
More info
|
Voltage: |
6.0V |
8.4V |
|
Speed: |
0.096sec |
0.068sec |
|
Torque: |
46.0kgcm |
60.0kgcm |
|
Motor: |
Brushless |
|
|
Gear: |
Titanium / Steel |
|
|
Bearing: |
yes, dual |
|
|
Max. Travel: |
~100° (bei 800: 2200µs) |
|
|
Quiescent Current: |
60mA @6.0V |
|
|
Rated Current: |
0.2A @6.0V |
|
|
Blocking Current: |
3.6A @6.0V |
|
|
Dimensions: |
40.7x20.5x38.9mm |
|
|
Weight: |
84.0g |
|
|
Output Gear: |
25T |
|
