M6DAC Pro LiPo 1-6S 16A Dobbelt Lader AC/DC (1)
Reference: TK14200
Tilstand: Ny vare
Producenter: ToolkitRC
Varen er desværre ikke på lager i øjeblikket
Yderligere information

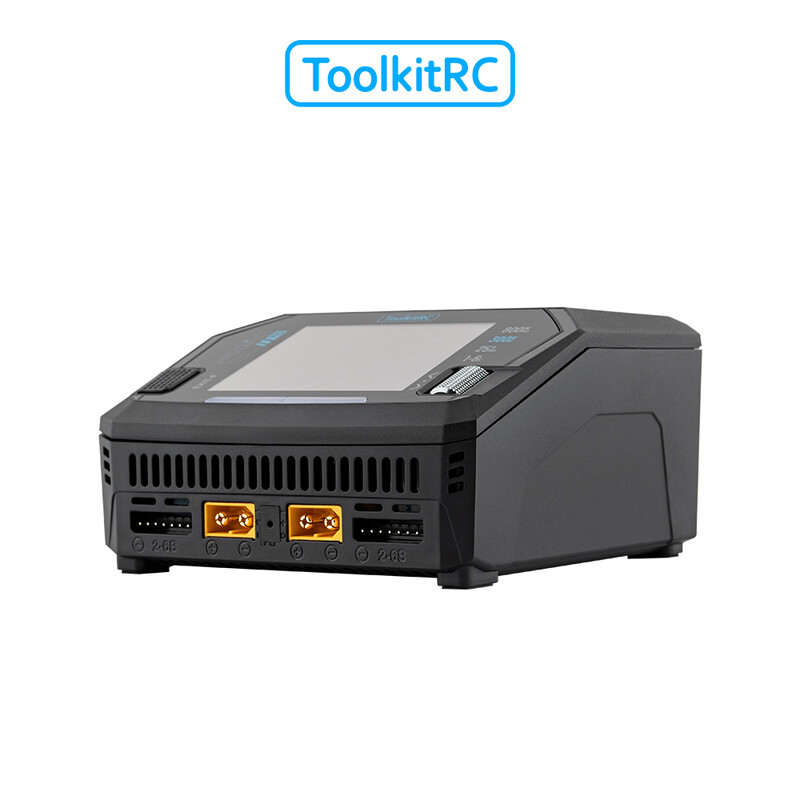

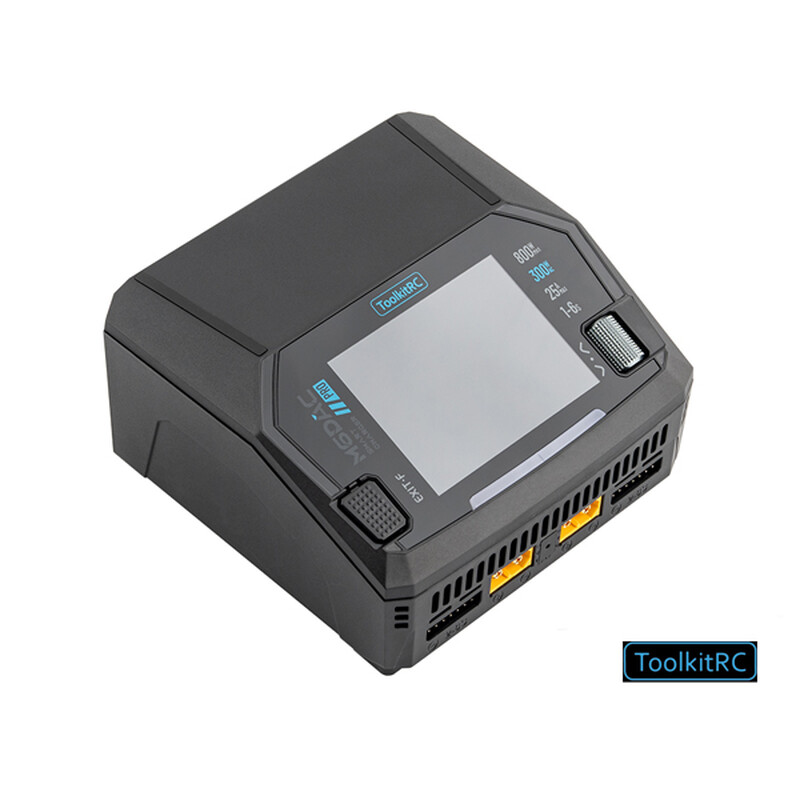

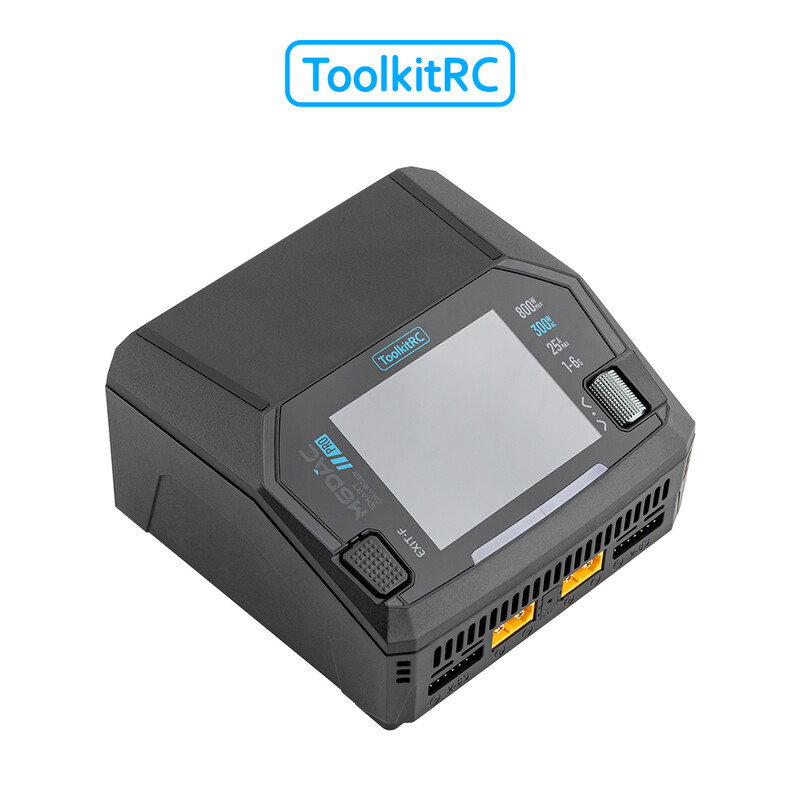

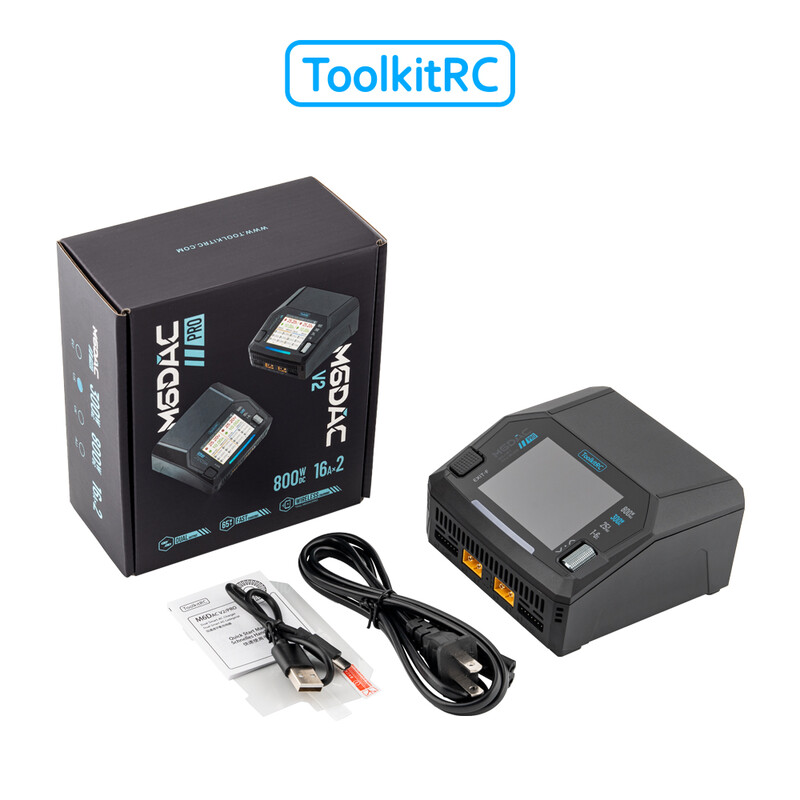

The ToolkitRC M6DAC Pro is a compact dual-channel charger, ideal for high-performance LiPo setups. It supports various battery chemistries and offers flexible power supply options as well as smart additional features such as wireless charging and USB-C Quick Charge.
Features:
- Dual-channel charger with built-in AC power supply (up to 300 W)
- DC operation from 7-28 V up to 400 W per channel or combined 700 W / 28 A in synchronous mode (DC input)
- Supported battery types: LiPo, LiHV, LiFe, Li-Ion, LTO (16S), NiMH (116S), Lead-acid (110S)
- Balancing current: approx. 1 A; high balancing accuracy < 0.005 V
- Power supply mode with adjustable voltage and current compatible with smart batteries (e.g. DJI)
- USB-C port with 65 W fast charging (including PD, QC, PPS, VOOC, etc.)
- Wireless charging for mobile devices
- Metal rotary knob for intuitive operation, LCD IPS display
- Active cooling via built-in fan
Technical Data:
| Input: | AC 100-240 V / DC 7-28 V (max. approx. 32 A) |
| Charging power: | AC: up to 300 W; DC: 2×400 W (up to 16 A) or synchronous 700 W (up to 28 A) |
| Balancing current / accuracy: | 1 A; < 0.005 V |
| USB-C: | 65 W (20 V / 3.25 A), QC/PD/VOOC, etc. |
| Wireless charging: | Yes (approx. 10 W) |
| Display: | 2.8 IPS LCD, 320 × 240 px |
| Dimensions: | approx. 116 × 112 × 63 mm |
| Weight: | approx. 600 g |
| Operation Voltage: | 2x AAA-Battery (sold seperately) |
| Operation Current: | up to 40mA @ 3V |
| Operation Temperature: | 0-50°C |
| Current Drain: | up to 25ua @ 3V |
| Adjustable Range for infrared emission frequency: | 0.01-1 |
| Precision: | -40°C - 0°C (+/- 1.5°C) |
| 0°C - 380°C (+/- 1.5°C) | |
| -40°F - 32°F (+/- 3°F) | |
| 32°F - 716°F (+/- 3°F) | |
| Weight: | 75g |
| Dimensions: | 121 x 40 x 39.6mm |
